產品介紹

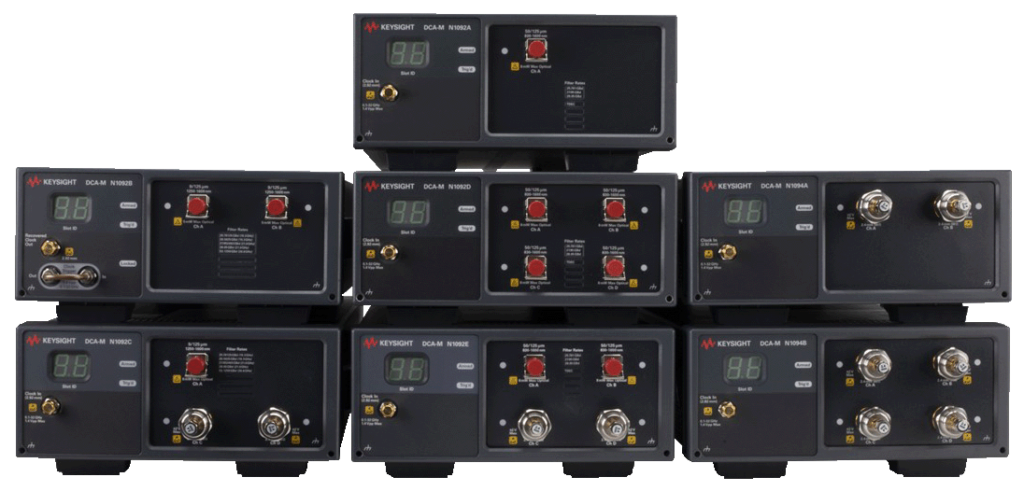

Keysight N1092 系列 為專為 DCA-X 取樣示波器平台 設計的 光電取樣接收模組（Optical Sampling Module），支援高速光訊號之 Eye Diagram（眼圖）、Jitter Analysis（抖動分析） 與 Mask Test（遮罩測試），適用於高速光收發器與資料中心光互連之研發、驗證與量產測試。
規格
Advanced Feature
| N1092A/B/C/D/E-IRC | Impulse response correction to provide ideal channel response | |
| N1092A/B/C/D/E-FS1 | Fast sampling rate | |
| N1092A/B/C/D/E-PLK | Pattern lock trigger hardware |
Filter rate
| N1092A/B/C/D/E-206 | Additional 20.625 Gb/s filter | |
| N1092A/B/C/D/E-280 | 25 to 29 GBaud filters | |
| N1092A/B/C/D/E-168 | 25.78 Gb/s TDEC filter |
Hardware configuration
| N1092A/B/C/D/C/E-30A | 30 GHz Amplified | |
| N1092A/B/C/D/E-40A | Amplified, 40 GHz | |
| N1092A/B-CDR | Clock Recovery, 24-29 and 48-58 GBd |
Trigger and timebase
| N1092A/B/C/D/E-LOJ | Low jitter timebase | |
| N1092A/B/C/D/E-STB | Standard timebase |
Fixed Node-Locked SW Licenses
| N1092A/B/C/D/E-200 | Enhanced Jitter Analysis Software, Fixed Perpetual License | |
| N1092A/B/C/D/E-201 | Advanced Waveform Analysis Software, Fixed Perpetual License | |
| N1092A/B/C/D/E-300 | Advanced Amplitude Analysis/Rin/Q-Factor, Fixed Perpetual License | |
| N1092A/B/C/D/E-401 | Advanced Eye Analysis Software, Fixed Perpetual License | |
| N1092A/B/C/D/E-500 | Productivity Package and TDEC measurement upgrade | |
| N1092A/B/C/D/E-9FP | PAM-N Analysis SW, Fixed Perpetual License | |
| N1092A/B/C/D/E-SIM | InfiniiSim-DCA Waveform Transformation SW, Fixed Perpetual License | |
| N1092A/B/C/D/E-EFP | Flex Eye - Independent Channel Acquisition and Control, Fixed Perpetual License | |
| N1092A/B/C/D/E-TFP | IEEE TDECQ analysis, Fixed Perpetual License |
儀器介紹
High accuracy, low cost solutions for optical and electrical waveform analysis including solutions for 20 Gb/s through 53 GBaud, very low noise and jitter, and fast sampling rates for high throughput.
The Keysight Technologies, Inc. N1000 and 86100 digital communication analyzer (DCA) family is recognized as the industry standard for verifying optical transmitter compliance to communications standards. For years engineers have trusted the DCA to provide accurate and easy measurement of digital communication waveforms. The Keysight N1092A/B/C/D/E DCA-M has built on that legacy by using the high-performance elements of both the N1000 and 86100 oscilloscope mainframe acquisition system and the optical and electrical channel hardware of the 861XX and N104X plug-in modules.
