產品概述

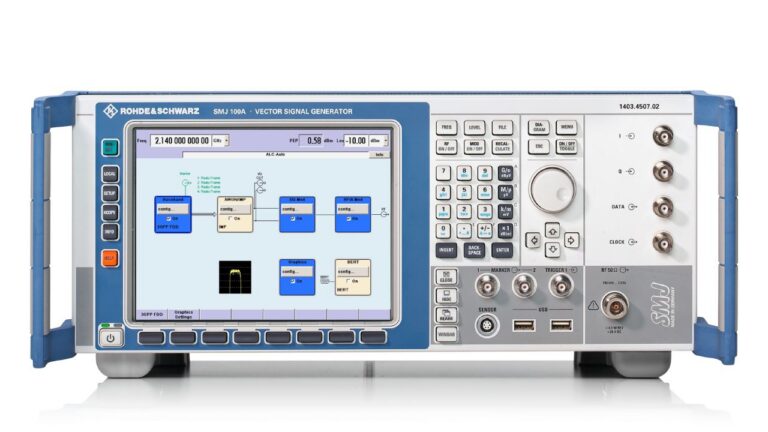

R&S SMJ100A 向量訊號產生器 | Vector Signal Generator 支援型號：SMJ100A
R&S SMJ100A 為Rohde & Schwarz 推出的高效能 Vector Signal Generator（向量訊號產生器），結合極低相位雜訊（Ultra-Low Phase Noise）、高輸出功率與寬頻向量調變能力，專為高階無線通訊、射頻前端與系統級驗證設計。
SMJ100A 適用於 RF Tx / Rx 測試、EVM / ACPR 驗證、接收端靈敏度測試與自動化量測，廣泛應用於研發實驗室、QA 與產線 EOL / ATE 測試環境。
常見應用
向量訊號與系統測試 NB-IoT / Cat-M / LPWAN 低功耗通訊模組驗證
射頻前端元件（PA / LNA / Mixer / FEM）特性量測
規格與選配
系統架構設計（System Architecture）
- 高穩定度向量訊號產生架構，支援即時與回放式基頻訊號
- 內建 Baseband Generator（基頻產生器）與 ARB 選配
- 支援多種數位與類比調變模式
- 圖形化操作介面（GUI），縮短學習曲線並提升產線操作效率
- 適合半自動化與全自動化測試架構整合
頻率範圍與量測效能（Frequency Range & Performance）
- 頻率範圍（Frequency Range）：100 kHz 至 3 GHz / 6 GHz（依選配）
- 低相位雜訊（Low Phase Noise）：–133 dBc/Hz @ 1 GHz, 20 kHz offset（typ.）
- 高輸出功率與優異振幅準確度
- 適用於數位 RF 傳輸與高品質向量訊號產生
調變與基頻能力（Modulation & Baseband Capability）
- 標準支援：AM、Pulse、IQ 調變
- 選配支援：FM、Phase 與各類數位調變
- 支援即時訊號產生（Real-time Signal Generation）
- 支援預存與回放向量波形（Waveform Playback）
無線通訊標準支援（Supported Wireless Standards）
- 行動通訊系統： GSM / EDGE、W-CDMA / HSPA、LTE / LTE-Advanced、NB-IoT、Cat-M
- 無線連接與區域網路： WLAN IEEE 802.11 a/b/g/n/ac（Wi-Fi 6 / Wi-Fi 7 前期驗證）
- 其他通訊與廣播應用： GPS、DVB-H、DAB、T-DMB （實際支援標準依安裝選配而定）
量產測試導向設計（Manufacturing-Oriented Design）
選配代碼
| SMJ100A - B10 | BASEBAND GENERATOR WITH ARB (64 MSAMPLES) AND DIGITAL MODULATION |
|---|---|
| SMJ100A - B103 | 100KHZ TO 3GHZ |
| SMJ100A - B106 | 100KHZ TO 6GHZ |
| SMJ100A - B11 | BASEBAND GENERATOR WITH ARB (16 MSAMPLES) AND DIGITAL MODULATION |
| SMJ100A - B13 | BASEBAND MAIN MODULE |
| SMJ100A - B16 | DIFFERENTIAL I/Q OUTPUT |
| SMJ100A - B18 | DIGITAL BASEBAND OUTPUT |
| SMJ100A - B20 | FM/PM MODULATOR |
| SMJ100A - B50 | BASEBAND GENERATOR WITH ARB (64 MSAMPLE) |
| SMJ100A - B51 | BASEBAND GENERATOR WITH ARB (16 MSAMPLE) |
| SMJ100A - B81 | REAR CONNECTORS |
| SMJ100A - B9 | BASEBAND GENERATOR WITH ARB (128 MSAMPLES) AND DIGITAL MODULATION |
| SMJ100A - B90 | PHASE COHERENCE |
| SMJ100A - K12 | DIGITAL STANDARD CDMA2000 |
| SMJ100A - K17 | DIGITAL STANDARD 1XEV-DO |
| SMJ100A - K20 | DIGITAL STANDARD 3GPP FDD INCL. HSDPA |
| SMJ100A - K240 | DIGITAL STANDARD GSM/EDGE |
| SMJ100A - K241 | DIGITAL STANDARD EDGE EVOLUTION |
| SMJ100A - K242 | DIGITAL STANDARD 3GPP FDD |
| SMJ100A - K243 | 3GPP ENHANCED MS/BS TESTS INCL. HSDPA |
| SMJ100A - K244 | DIGITAL STANDARD GPS |
| SMJ100A - K245 | 3GPP FDD HSUPA |
| SMJ100A - K246 | DIGITAL STANDARD CDMA2000 INCL. 1XEV-DV |
| SMJ100A - K247 | DIGITAL STANDARD 1XEV-DO REV. A |
| SMJ100A - K248 | DIGITAL STANDARD IEEE 802.11 (A/B/G) |
| SMJ100A - K249 | DIGITAL STANDARD IEEE 802.16 |
| SMJ100A - K250 | DIGITAL STANDARD TD-SCDMA |
| SMJ100A - K251 | TD-SCDMA ENHANCED BS/MS TESTS |
| SMJ100A - K252 | DIGITAL STANDARD DVB-H / DVB-T |
| SMJ100A - K253 | DIGITAL STANDARD DAB/T-DMB |
| SMJ100A - K254 | DIGITAL STANDARD IEEE 802.11N |
| SMJ100A - K255 | DIGITAL STANDARD LTE/EUTRA |
| SMJ100A - K256 | PLAYBACK OF XM RADIO WAVEFORMS |
| SMJ100A - K259 | DIGITAL STANDARD HSPA+ |
| SMJ100A - K260 | DIGITAL STANDARD BLUETOOTH EDR |
| SMJ100A - K261 | MULTICARRIER CW SIGNAL GENERATION |
| SMJ100A - K262 | ADDITIONAL WHITE GAUSSIAN NOISE (AWGN) |
| SMJ100A - K268 | DIGITAL STANDARD TETRA RELEASE 2 |
| SMJ100A - K284 | LTE RELEASE 9 + ENHANCED FEATURES |
| SMJ100A - K285 | LTE RELEASE 10 / LTE-ADVANCED |
| SMJ100A - K286 | IEEE 802.11AC |
| SMJ100A - K287 | 1XEV-DO REV. B |
| SMJ100A - K352 | HD RADIO TEST WAVEFORMS |
| SMJ100A - K353 | DAB+ STREAMS |
| SMJ100A - K354 | T-DMB/DAB STREAMS |
| SMJ100A - K40 | DIGITAL STANDARD GSM / EDGE |
| SMJ100A - K41 | DIGITAL STANDARD EDGE EVOLUTION |
| SMJ100A - K42 | DIGITAL STANDARD 3GPP FDD |
| SMJ100A - K43 | 3GPP FDD ENHANCED MS/BS TESTS INCL. HSDPA |
| SMJ100A - K44 | DIGITAL STANDARD GPS |
| SMJ100A - K45 | DIGITAL STANDARD 3GPP FDD HSUPA |
| SMJ100A - K46 | DIGITAL STANDARD CDMA2000 INCL. 1XEV-DV |
| SMJ100A - K47 | DIGITAL STANDARD 1XEV-DO |
| SMJ100A - K48 | DIGITAL STANDARD IEEE 802.11 (A/B/G) |
| SMJ100A - K49 | DIGITAL STANDARD IEEE 802.16 |
| SMJ100A - K50 | DIGITAL STANDARD TD-SCDMA |
| SMJ100A - K51 | DIGITAL STANDARD ENHANCED TD-SCDMA |
| SMJ100A - K52 | DIGITAL STANDARD DVB-H / DVB-T |
| SMJ100A - K53 | DIGITAL STANDARD DAB / T-DMB |
| SMJ100A - K54 | DIGITAL STANDARD IEEE 802.11N |
| SMJ100A - K55 | DIGITAL STANDARD EUTRA/LTE |
| SMJ100A - K56 | DIGITAL STANDARD XM RADIO |
| SMJ100A - K57 | DIGITAL STANDARD FM STEREO/RDS |
| SMJ100A - K58 | DIGITAL STANDARD SIRIUS DIGITAL RADIO |
| SMJ100A - K59 | DIGITAL STANDARD HSPA+ |
| SMJ100A - K6 | PULSE SEQUENCER |
| SMJ100A - K60 | DIGITAL STANDARD BLUETOOTH EDR |
| SMJ100A - K61 | MULTICARRIER CW SIGNAL GENERATION |
| SMJ100A - K62 | ADDITIVE WHITE GAUSSIAN NOISE (AWGN) |
| SMJ100A - K68 | DIGITAL STANDARD TETRA RELEASE 2 |
| SMJ100A - K69 | LTE CLOSED-LOOP BS TEST |
| SMJ100A - K80 | BER/BLER MEASUREMENT |
| SMJ100A - K81 | LTE LOGFILE GENERATION |
| SMJ100A - K84 | E RELEASE 9 + ENHANCED FEATURES |
| SMJ100A - K85 | LTE RELEASE 10 / LTE-ADVANCED |
| SMJ100A - K86 | DIGITAL STANDARD IEEE 802.11AC |
| SMJ100A - K87 | 1XEV-DO REV. B |
英文技術說明
The Rohde & Schwarz SMJ100A meets all challenges that diverse applications place on modern vector signal generators.
For example, it offers the signal quality and flexibility required in research and development not to mention a convenient graphical user interface (GUI).
And this is by no means all the SMJ100A has to offer a fact that becomes evident in production, where it excels with its flexible baseband and low setting times.
The baseband meets all requirements, from providing realtime signals to replaying precalculated waveforms.
Equipped with a 3 GHz or 6 GHz frequency option, the SMJ100A covers all important frequency bands essential in digital RF transmission.
The internal baseband generator option handles a multitude of digital standards, e.g.GSM/EDGE, 3GPP FDD and CDMA2000.
Its characteristics make the SMJ100A the ideal multipurpose vector signal generator, supporting a wide variety of applications.
