產品介紹
此產品為 【弘燁科技】Keysight M8040A 64 GBaud 高性能 BERT｜High-Performance BERT｜PAM4/NRZ｜SerDes 測試。
品牌為 是德/安捷倫(Keysight/Agilent/HP)，型號為 M8040A 64 GBaud 高性能 BERT｜High-Performance BERT｜PAM4 / NRZ｜SerDes 測試。
目前頁面已整理基本產品資訊，並提供可下載之型錄或規格文件，建議可先參考下方檔案下載區。
規格
Keysight M8040A 64 GBaud High-Performance BERT 規格
| Module Type | Pattern Generator / Error Analyzer（BERT） |
|---|---|
| Line Coding | NRZ / PAM3 / PAM4 |
| Max. Sampling Rate | 64.8 GBd |
| Number of Channels | 1 / 2（依配置） |
Standards / Applications： PCIe 6.0 / PCIe 5.0
原廠英文說明

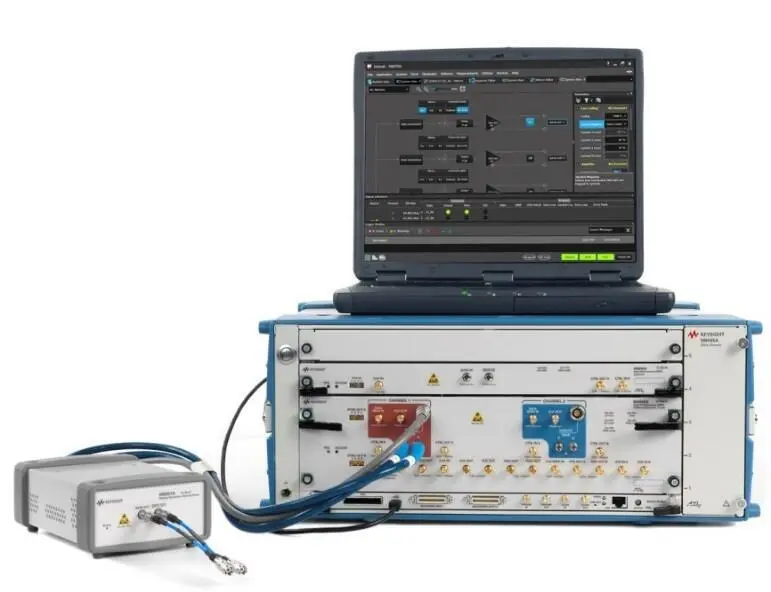

The M8040A high-performance BERT provides clean NRZ and PAM4 signals up to 64 GBaud with fast transitions and low intrinsic jitter. The remote head concept of M8040A with the short 1.85 mm cables brings the performance close to the device under test, minimizing signal degradations caused by lossy channels.
data rates from 2 to 64 GBaud PAM4 signal
built-in de-emphasis, analyzer equalization, and clock recovery integrated and calibrated jitter injection: RJ, PJ1, PJ2, SJ, BUJ, and clk / 2 jitter two pattern generator channels per module to emulate aggressor lane
interactive link training and SKP OS filtering for 8 / 16 / 32 / 64 GT/s PCI Express® algorithmic PRBS, QPRBS, and memory-based patterns, pattern sequencer for PAM4, gray coding, FEC encoding, and precoder and error distribution analysis
all options and modules are upgradeable
offers true error analysis and provides repeatable and accurate results, optimizing the performance margins of your devices
Target Applications
The M8040A is designed for research and development engineers and test engineers who characterize chips, devices, transceiver modules and sub-components, boards, and systems with serial I/O ports operating with data rates up to 32 GBaud and 64 GBaud in the server, computing, data center, and communications industry. The M8040A can be used for receiver (input) testing for many popular interconnect standards that use PAM4 and NRZ data formats such as: PCIe 6.0 / 5.0 / 4.0, TBT3, 400 GbE, 50 /
100 / 200 / 400 / 800 GbE, OIF CEI-56G, and CEI-112G, 64G/112G Fibre Channel, Infiniband-HDR, and proprietary interfaces for chip-to-chip, chip-to-module, backplanes, repeaters, and active optical cables. The pattern generator of the M8040A GBaud BERT provides a clean 32 and 26.5625 GBaud PAM4 output signal.
