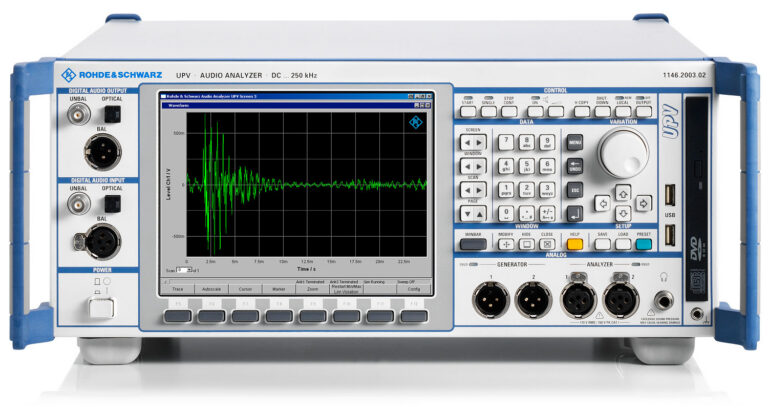

R&S UPV Audio Analyzer 音頻分析儀|Audio Analyzer UPV

視頻音頻儀器 / 音頻分析儀

R&S UPV Audio Analyzer 音頻分析儀|Audio Analyzer UPV

型號 UPV

供應狀態、選配與交期請洽詢確認。

產品概述

R&S UPV 為 Rohde & Schwarz 經典高階 Audio Analyzer(音頻分析儀),適用於類比與數位音頻設備量測,提供高精度失真分析、頻率響應、雜訊分析與數位音訊介面測試能力。

現貨 / 客訂均可(依頻寬、選件需求供貨)

多型號音頻分析儀(R&S UPV / UPP / Audio Precision / Keysight 等)

規格與選配

主要規格與效能(Core Specifications)

訊號產生與量測能力(Signal Generation & Measurement Capability)

· 可產生多種 Analog 類比測試訊號 · 搭配 R&S® UPV-B2 / B41 / B42 選件可產生 Digital 數位測試訊號 · 類比與數位介面完整量測能力 · 多通道 FFT 分析,解析度可達 mHz 等級 · 取樣率最高可達 400 kHz · 可同時顯示多種量測功能 · 使用者可自訂濾波器,快速對應不同測試需求 · Generator 與 Analyzer 介面可獨立設定並任意組合使用 · 一體化設計,無需額外周邊設備

標準配置(Standard Configuration)

  • Analog Generator Outputs 類比訊號產生器(標準配備)
  • Dual-Channel Analyzer 雙通道類比分析器(標準配備)
  • 支援 Analog 類比輸入量測

擴充選件(Optional Extensions)

· R&S® UPV-B48 — 擴充至 8 或 16 測試通道 · R&S® UPV-B2 — Digital Audio Interfaces 數位音訊介面 · R&S® UPV-K21 — Digital Protocol Analysis & Generation 數位協定分析與產生 · R&S® UPV-K22 — Jitter & Interface Test 抖動與介面測試 · R&S® UPV-B41 — I²S 介面 Audio IC 測試 · R&S® UPV-B42 — Universal Serial Interface 通用序列介面擴充 · R&S® UPV-K421 — PDM Bitstream Analysis PDM 位元流分析

適用介面(Supported Interfaces)

  • Analog 類比音頻
  • Digital 數位音訊
  • 類比 / 數位混合應用
  • AES/EBU / SPDIF / I²S / PDM 等介面測試
英文技術說明

Generation of a wide variety of analog and – by using the R&S®UPV-B2/-B41/-B42 options – digital test signals Extensive measurement capabilities, on analog and also – when the R&S®UPV-B2/-B41/-B42 options are installed –digital interfaces Efficient as well as multichannel FFT analysis with a resolution down to the mHz rangeUser-programmable filters can be adapted to the measurement task at hand in only a few seconds Everything included, no peripherals required
