Product Overview
Hioki IM7587 Impedance Analyzer, 1 MHz to 3 GHz
RF I-V impedance analyzer for high-frequency passive-component evaluation. Confirm the matched test head, fixture, measurement conditions and interface options.
Key specifications and configuration
- Measurement frequency: 1 MHz to 3 GHz.
- Fastest analog measurement time: 0.5 ms under specified conditions.
- Representative basic accuracy: +/-0.65% of reading.
- The Traditional Chinese IM7580-series brochure distinguishes model ranges; do not apply the 3 GHz limit to every series model.
Hioki LCR / Impedance
Typical applications
- Component characterization
- Fixture and test frequency review
- Laboratory or QA measurement
Information for quotation
- Measurement frequency, impedance range and fixture type
- Exact model number and option code
- Required accessories or fixtures
- Quantity and target lead time
- Calibration or service requirement

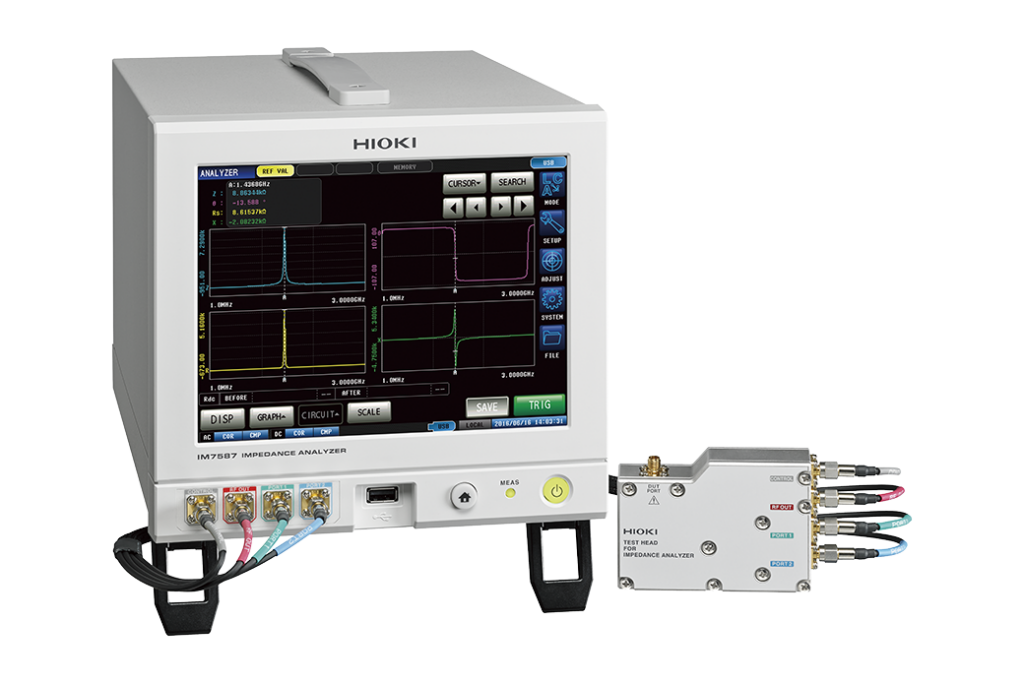

Product image
Datasheets and technical files
Contact SMART to confirm the latest specifications, available options, accessories, calibration and lead time.
