產品介紹

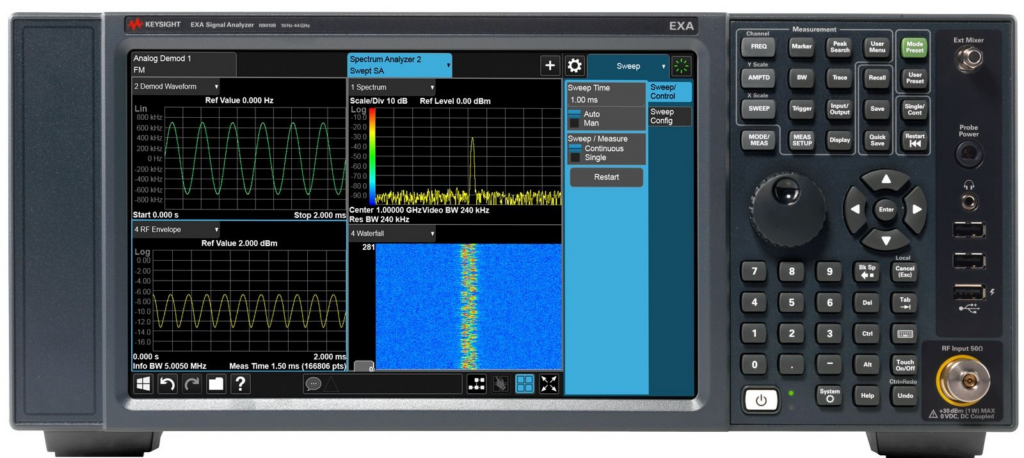

產品定位：Keysight N9010B EXA 訊號分析儀｜Signal Analyzer / Spectrum Analyzer｜9 kHz– 44 GHz 屬於頻譜分析與射頻訊號量測設備，可用於RF 訊號分析、雜訊量測、通訊測試、EMI 預掃描、研發除錯與產線檢測。
選型重點：實際頻率範圍、動態範圍與分析功能需依機身選配與校正狀態確認。評估 N9010B 時，建議同步確認頻率範圍、RBW/VBW、前置放大器、追蹤產生器、相位雜訊、選配與校正狀態。
採購與技術確認：弘燁科技可依目前庫存、附件組合、校正需求與交期，協助比對同級替代型號並整理可交付方案。
品牌與分類：品牌為 Keysight / Agilent / HP，產品分類為 射頻微波儀器。如需確認完整規格、附件、校正與交期，建議提供實際量測條件由 SMART 協助確認。
規格
N9010B-503 Frequency range, 10 Hz to 3.6 GHz N9010B-507 Frequency range, 10 Hz to 7 GHz N9010B-513 Frequency range, 10 Hz to 13.6 GHz
N9010B-526 Frequency range, 10 Hz to 26.5 GHz N9010B-532 Frequency range, 10 Hz to 32 GHz N9010B-544 Frequency range, 10 Hz to 44 GHz
N9010B-P03 Preamplifier, 3.6 GHz N9010B-P07 Preamplifier, 7 GHz N9010B-P13 Preamplifier, 13.6 GHz
N9010B-P26 Preamplifier, 26.5 GHz N9010B-P32 Preamplifier, 100 kHz – 32 GHz N9010B-P44 Preamplifier, 100 kHz – 44 GHz
N9010B-B40 Analysis bandwidth, 40 MHz
Performance Options（性能/功能選配）
N9010B-DP2 Digital processor, 2 GB capture memory N9010B-EA3 Electronic attenuator, 3.6 GHz
N9010B-NF2 Noise floor extension, instrument alignment
原廠英文說明
When enhancing a product and improving test throughput, your general-purpose signal analyzer should be ready for a wide range of challenging requirements. The fast, flexible N9010B EXA Signal Analyzer addresses diverse needs with a solid mix of speed and performance and the versatility of PathWave X-Series measurement applications. See more with a wide frequency range of 10 Hz to 44 GHz with up to 40 MHz analysis bandwidth
Save test time in your spurious response measurements with the fast sweep capability Get the most cost-effective analysis for millimeter-wave measurements Measure small signals in the presence of large ones with level accuracy, displayed average noise level (DANL), and third order intermodulation (TOI) distortion
Perform power measurements quickly at discrete frequency points with list-sweep mode Simplify testing with PathWave X-Series measurement applications
