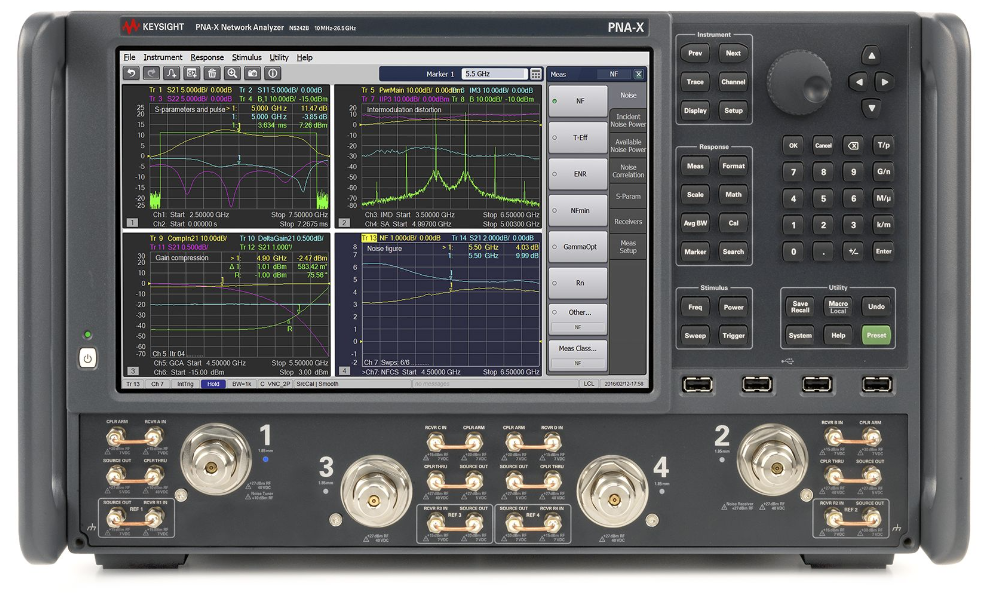

The PNA-X network analyzer is the world’s most integrated and flexible microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters.

Including two internal signal sources, S-parameter and noise receivers, pulse modulators and generators, a signal combiner, and set of switches and RF access points, the PNA-X architecture supports a broad range of linear and nonlinear measurements.

Replace an entire rack of equipment with a simplified testbed using one PNA-X network analyzer to test your device under test with only a single set of connections.

規格重點（Key Features）
• PNA-X 系列微波向量網路分析儀（VNA）
PNA-X Microwave Vector Network Analyzer
• 頻率範圍：10 MHz 至 8.5 / 13.5 / 26.5 GHz（依型號）
Frequency range from 10 MHz up to 26.5 GHz (model dependent)
• 支援 2-Port / 4-Port 可配置測試架構
2-port or 4-port configurable test set
• 最大輸出功率：+13 dBm
Output power up to +13 dBm
• 動態範圍最高達 136 dB，極低雜訊表現
Dynamic range up to 136 dB, as low as 0.002 dB rms trace noise
• 適用 AI 伺服器 / HPC 高速互連、Data Center、RF 元件研發與產線測試
Ideal for AI/HPC interconnect, data center and RF validation

────────────────────────────────────────

硬體選配（Hardware Options｜N5242B）
• 2-Port configurable test set｜N5242B-201
• 2-Port + Bias Tees + LF extension｜N5242B-205
• 2-Port + Attenuators｜N5242B-217
• 2-Port + Attenuators + Bias Tees｜N5242B-219
• 2-Port + Attenuators + Second Source + Combiner + Switches｜N5242B-222
• 2-Port + Attenuators + Bias Tees + Second Source + Combiner + Switches｜N5242B-224
• 4-Port configurable test set + Second Source｜N5242B-401
• 4-Port + Second Source + Attenuators｜N5242B-417
• 4-Port + Second Source + Attenuators + Bias Tees｜N5242B-419
• 4-Port + Second Source + Attenuators + Combiner + Switches｜N5242B-422
• 4-Port + Second Source + Attenuators + Bias Tees + Combiner + Switches｜N5242B-423
• 4-Port + Second Source + Attenuators + Combiner + Switches + Bias Tees + LF extension｜N5242B-425

────────────────────────────────────────

硬體能力擴充（Additional Hardware Capability｜N5242B）
• Add IF inputs｜N5242B-020
• Add pulse modulator to internal 1st source｜N5242B-021
• Add pulse modulator to internal 2nd source｜N5242B-022
• Add noise receiver to 26.5 GHz｜N5242B-029
• Enhanced low phase noise performance｜N5242B-UNY
• Third RF source up to 13.5 GHz｜N5242B-XSB

────────────────────────────────────────

時域分析（Time Domain / TDR）
• Time-domain analysis｜S93010B
• Enhanced time domain analysis with TDR｜S93011B
• Automatic fixture removal｜S93007B

────────────────────────────────────────

雜訊 / 脈衝 RF（Noise Figure / Pulsed RF）
• Noise figure with vector correction｜S93029B
• Basic pulsed-RF measurements｜S93025B
• Advanced pulsed-RF measurements｜S93026B
• Mechanical noise tuner control｜S93027B

────────────────────────────────────────

混頻器 / 非線性量測（Mixer / Nonlinear）
• Scalar mixer / converter measurements｜S93082B
• Vector & scalar mixer / converter measurements｜S93083B
• Embedded-LO capability｜S93084B
• Gain compression & IMD measurements｜S93086B / S93087B
• Nonlinear X-parameters｜S94514B

────────────────────────────────────────

Keysight N5249B / N5241B / N5242B datasheet:

• Datasheet PD1753335362706
