品牌
羅德史瓦茲 (R&S)
型號
SMB100B
類別
—
規格資料
已整理
文件下載
可下載
產品介紹

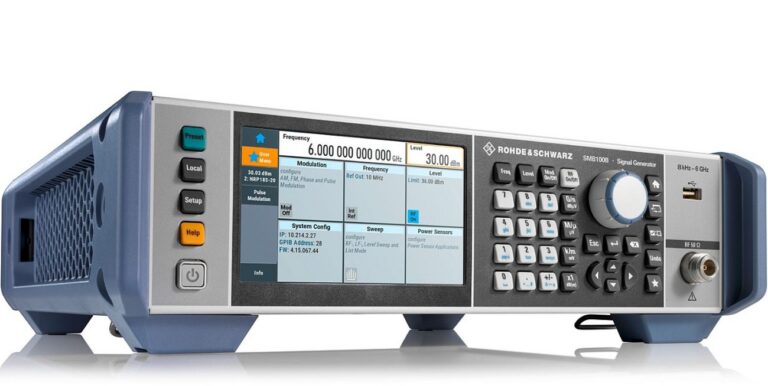

產品定位：R&S SMB100B RF 訊號產生器 | RF Signal Generator 屬於訊號產生與 RF 測試源設備，可用於RF 訊號源、接收機測試、通訊模組驗證、頻率響應測試與系統整合。
選型重點：實際輸出範圍、調變能力與相位雜訊表現需依選配與校正狀態確認。評估 SMB100B 時，建議同步確認頻率範圍、輸出功率、相位雜訊、調變功能、選配、附件與校正狀態。
採購與技術確認：弘燁科技可依目前庫存、附件組合、校正需求與交期，協助比對同級替代型號並整理可交付方案。
品牌與分類：品牌為 Rohde & Schwarz，產品分類為 射頻微波儀器。如需確認完整規格、附件、校正與交期，建議提供實際量測條件由 SMART 協助確認。
規格
原廠完整規格表 / Full Specifications
以下整理原廠完整規格表，供型號確認、規格比對與詢價確認使用。
| Frequency range | R&S SMBB-B101 | 8 kHz to 1 GHz |
| R&S SMBB-B103 | 8 kHz to 3 GHz | |
| R&S SMBB-B106 | 8 kHz to 6 GHz | |
| Level | ||
| Maximum specified output power (PEP) | R&S SMBB-B101/-B103/-B106 | |
| standard | ||
| 200 kHz < f ≤ 1 MHz | –110 dBm to +13 dBm | |
| 1 MHz < f ≤ 10 MHz | –110 dBm to +18 dBm | |
| 10 MHz < f ≤ 6 GHz | –127 dBm to +18 dBm | |
| with R&S SMBB-K31 option | ||
| 200 kHz < f ≤ 1 MHz | –110 dBm to +13 dBm | |
| 1 MHz < f ≤ 10 MHz | –110 dBm to +21 dBm | |
| 10 MHz < f ≤ 4 GHz | –127 dBm to +21 dBm | |
| 4 GHz < f ≤ 6 GHz | –127 dBm to +20 dBm | |
| with R&S SMBB-B32 and R&S SMBB-K31 options | ||
| 200 kHz < f ≤ 10 MHz | –110 dBm to +21 dBm | |
| 10 MHz < f ≤ 6 GHz | –127 dBm to +26 dBm | |
| Spectral purity | ||
| SSB phase noise | f = 1 GHz, 20 kHz offset, 1 Hz measurement bandwidth | < –126 dBc, –132 dBc (typ.) |
| Harmonics | 1 MHz < f ≤ 6 GHz; level ≤ 13 dBm | < –30 dBc |
| Nonharmonics | CW, level > +10 dBm; offset > 10 kHz from carrier | |
| f ≤ 750 MHz | < –80 dBc | |
| 750 MHz < f ≤ 1500 MHz | < –76 dBc | |
| 1500 MHz < f ≤ 3 GHz | < –70 dBc | |
| 3 GHz < f ≤ 6 GHz | < –64 dBc | |
| Modulation | with R&S SMBB-K720 option | AM, FM, φM |
| with R&S SMBB-K22 option | pulse modulation | |
| On/off ratio | > 80 dB | |
| Rise/fall time, 10 % to 90 % of RF amplitude, f > 80 MHz, transition type: Fast |
< 15 ns, < 5 ns (meas.) | |
| Minimum pulse width, 50 %/50 % of RF amplitude transition type: Fast |
< 20 ns | |
原廠英文說明
The new R&S SMB100B RF signal generator is all about performance and versatility in a small footprint. Outstanding spectral purity and very high output power combined with comprehensive functionality and very simple operation are some of the impressive features of the R&S SMB100B. It offers a frequency range from 8 kHz to 1 GHz, 3 GHz or 6 GHz.
