產品介紹

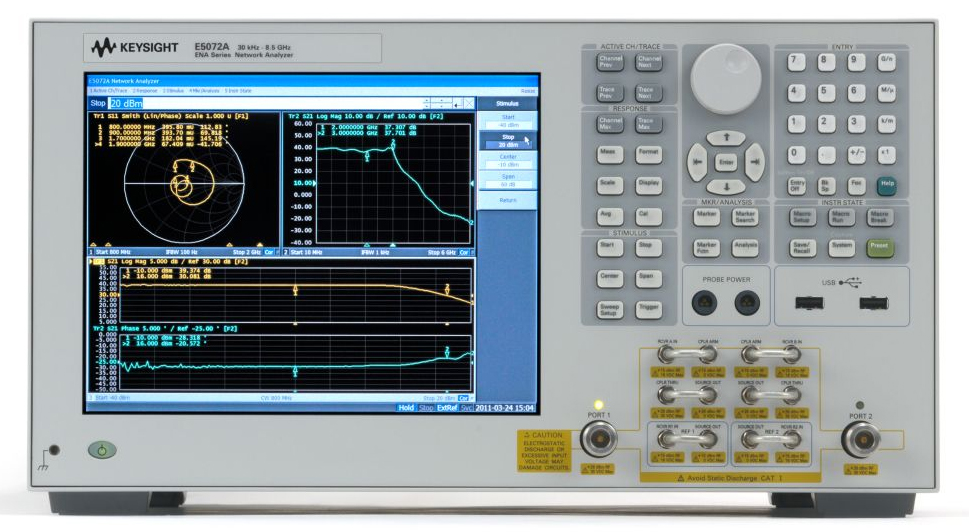

此產品為 【弘燁科技】Keysight E5072A 向量網路分析儀｜ENA Vector Network Analyzer｜30 kHz ~ 4.5 /8.5 GHz。
品牌為 是德/安捷倫(Keysight/Agilent/HP)，型號為 E5072A。
目前頁面已整理基本產品資訊，並提供可下載之型錄或規格文件，建議可先參考下方檔案下載區。
規格
Keysight E5072A ENA Vector Network Analyzer（VNA） 為 ENA 系列高性價比 2-port 網路分析儀，頻率範圍涵蓋 30 kHz 至 4.5 GHz 或 8.5 GHz（依配置），支援 Configurable test set（Direct receiver access），並具備寬輸出功率範圍 –85 至 > +16 dBm，適合進行微弱訊號與高動態範圍元件量測。E5072A 擁有優異量測效率，典型速度可達 22 ms（full 2-port cal、1601 points、500 kHz IFBW），非常適合 研發驗證、QA、產線 EOL 自動化 測試環境。另支援 Windows OS 與 LAN/USB/GPIB 連線，且與 E5071C 及 8753 系列 具備程式碼相容性，方便快速接軌既有測試系統。
2-port, 30 kHz to 4.5 GHz or 8.5 GHz（依配置）
適用於 RF 元件、天線、濾波器、線材/連接器等 S-Parameter 量測
Configurable test set（Direct receiver access） 可依測試需求彈性配置量測架構，利於治具/特殊量測應用 2-port 量測：支援 S11 / S21（回波/插入損耗）
可延伸應用至更進階量測需求（依外部配置/需求）
Wide output power range：–85 to > +16 dBm
適合高隔離元件、微小插入損耗與低回波量測需求
Measurement speed
Fast measurement speed：22 ms 條件：full 2-port cal / 1601 points / 500 kHz IFBW
Measurement functions
S-Parameter measurements：S11 / S21（可延伸至多種量測需求）
| Impedance measurement（阻抗分析） | Smith Chart / R-X / |Z| |
|---|---|
| Group Delay | 濾波器/通訊元件相位特性分析 |
| 支援治具量測與修正 | fixture embedding/de-embedding、阻抗轉換（依需求/配置） |
Interface
10.4" Color LCD with touch screen（觸控螢幕）
支援 SCPI remote programming，易於整合 LabVIEW / Python 自動化
Code compatibility with Keysight E5071C and 8753 Series
Applications
✓ Amplifier / Attenuator / Switch / Coupler 測試
✓ Cable / Connector 量測與品質檢驗
原廠英文說明
ENA with Configurable Test Set
Keysight E5072A Network Analyzer, a member of the ENA Series has a more flexible platform and enhanced capabilities that can meet your evolving measurement needs in a wide range of applications (i.e. power amplifiers, high-power or high-rejection measurements). Improved performance of the E5072A exceeds what is possible with current RF network analyzers.
Configurable Test Set
The E5072A with a configurable test set provides access to the signal paths between the internal source, receivers, bridges, and the analyzer's test ports. This improves instrument sensitivity as well as adding the ability to add components or peripherals for a variety of applications. The E5072A delivers new standards in versatility, speed and accuracy, and is suitable for full performance characterization of passive and active components, such as antennas, filters, and high-power amplifiers.
Wide output power range
The E5072A delivers the source power level up to +20 dBm from the test port. By eliminating additional booster amps, the E5072A can perform measurements of compression characteristics of active devices with a single power sweep.
Compatible with the E5071C and 8753
100% code compatibility is guaranteed between the E5072A and the E5071C with fi rmware revision 9.61 or before. The E5072A also offers a powerful code emulation tool (cXL) for 8753ES, which can minimize your transition risk or cost from legacy network analyzers to the E5072A.
