Product Overview
Hioki IM7583 Impedance Analyzer, 1 MHz to 600 MHz
RF I-V impedance analyzer for passive-component R&D, QA and production inspection. Confirm the test head, fixture, signal level and calibration requirements.
Key specifications and configuration
- Measurement frequency: 1 MHz to 600 MHz.
- Fastest analog measurement time: 0.5 ms under specified conditions.
- Representative basic accuracy: +/-0.65% of reading.
- The family brochure also covers higher-frequency models; the IM7583 itself is limited to 600 MHz.
Hioki LCR / Impedance
Typical applications
- Component characterization
- Fixture and test frequency review
- Laboratory or QA measurement
Information for quotation
- Measurement frequency, impedance range and fixture type
- Exact model number and option code
- Required accessories or fixtures
- Quantity and target lead time
- Calibration or service requirement

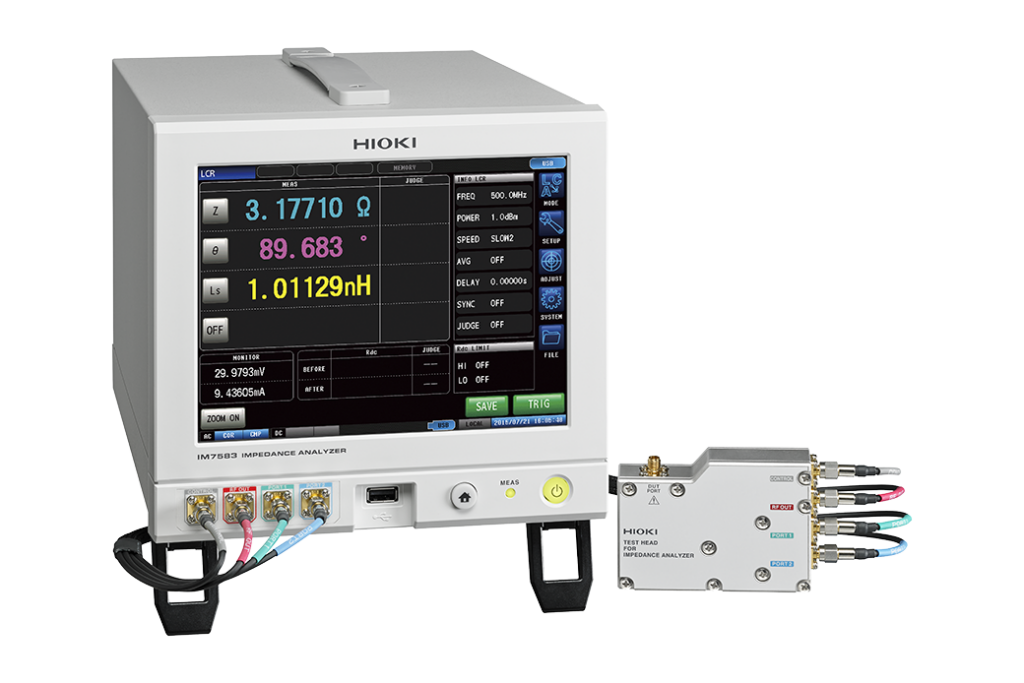

Product image
Datasheets and technical files
Contact SMART to confirm the latest specifications, available options, accessories, calibration and lead time.
