Hioki IM3536 LCR Meter, 4 Hz to 8 MHz
LCR meter for component R&D and production inspection, covering DC resistance and 4 Hz to 8 MHz AC measurements. Confirm the fixture, signal level and bias requirements.
Key specifications and configuration
- Measurement frequency: DC resistance, and 4 Hz to 8 MHz for AC measurements.
- Fastest measurement time: 1 ms under specified conditions.
- Representative basic impedance accuracy: +/-0.05% of reading.
- Test fixtures and probes are separate selection items; signal-level limits vary with frequency.
Hioki LCR / Impedance
Typical applications
- Component characterization
- Fixture and test frequency review
- Laboratory or QA measurement
Information for quotation
- Measurement frequency, impedance range and fixture type
- Exact model number and option code
- Required accessories or fixtures
- Quantity and target lead time
- Calibration or service requirement

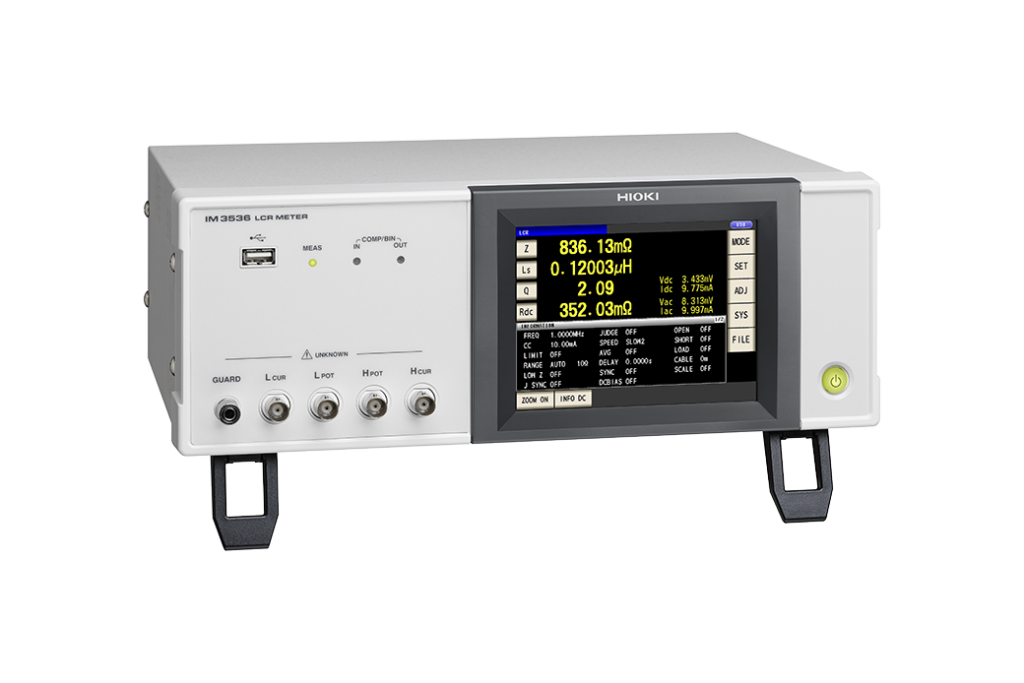

Product image
Datasheets and technical files
Contact SMART to confirm the latest specifications, available options, accessories, calibration and lead time.
