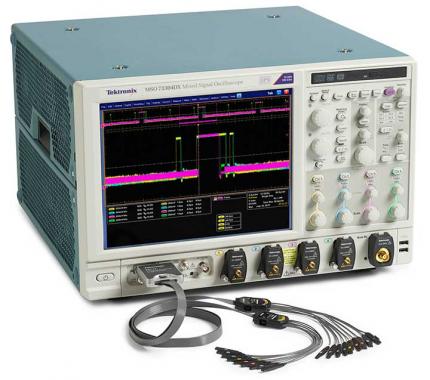

【弘燁科技-專業儀器】太克 Tektronix MSO70404C Digital and Mixed Signal Oscilloscopes 混合訊號示波器 二手儀器/買賣/租賃/出租/購買/價格/收購/回收/維修儀器/校驗/校正儀器
儀器類別
【弘燁科技-專業儀器】太克 Tektronix MSO70404C Digital and Mixed Signal Oscilloscopes 混合訊號示波器 二手儀器/買賣/租賃/出租/購買/價格/收購/回收/維修儀器/校驗/校正儀器
| Model | Analog Bandwidth | Analog Sample Rate 2/4 Channels | Standard Memory Analog + Digital | Analog Channels | Logic Channels |
|---|---|---|---|---|---|
| MSO70404C | 4 GHz | 25 GS/s | 62 MS | 4 | 16 |
【弘燁科技-專業儀器】Tektronix MSO70404C Digital and Mixed Signal Oscilloscopes 混合訊號示波器 二手儀器/買賣/租賃/出租/購買/價格/收購/回收/維修儀器/校驗/校正儀器
歡迎來電諮詢,謝謝
產品介紹
- 儀器介紹
- 儀器規格
- 檔案下載
Key features
- Superior signal integrity and excellent signal-to-noise ratio – observe the truest representation of your waveform
- Pinpoint® triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
- Visual Trigger – precisely qualify triggers and find unique events in complex waveforms
- Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest
- Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY
- P7700, P7600, and P7500 TriMode™ probing system – perfectly matched signal connectivity, with calibration to probe tip
- P6780, P6750, and P6717A high-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections to today's fast digital signals (MSO70000 Series only)
Connectivity
- USB 2.0 host port on both the front panel and rear panel for quick and easy data storage, printing, and connecting a USB keyboard
- Integrated 10/100 Ethernet port for network connection and Video Out port to export the oscilloscope display to a monitor or projector
Application support
- High-speed serial industry standards compliance
- SignalVu® RF and vector signal analysis
- DDR memory bus analysis
Applications
- Design verification including signal integrity, jitter, and timing analysis
- Design characterization for high-speed, sophisticated designs
- Certification testing of serial data streams for industry standards
- Memory bus analysis and debug
- Prototype turn-on and power supply verification
- Research and investigation of transient phenomena
- Production testing of complex systems
- Spectral analysis of transient or wide-bandwidth RF signals
【弘燁科技-專業儀器設備】-太克 Tektronix MSO70404C Digital and Mixed Signal Oscilloscopes 混合訊號示波器 二手儀器/買賣/租賃/出租/購買/收購/價格
| DPO70404C, MSO70404C | |
| Analog channels | 4 |
| Digital channels (MSO70000 Series only) | 16 |
| Analog bandwidth (user-selectable DSP enhance) (–3dB) | 4 GHz |
| Hardware Analog Bandwidth (-3 dB) | 4 GHz |
| Rise time (typical) | 10% to 90%: 98 ps 20% to 80%: 68 ps |
| Sample rate (1, 2 ch) (maximum sample rate is 50 GS/s ) | 25 GS/s |
| Sample rate (3, 4 ch) | 25 GS/s |
| Sample rate (ET/IT mode) | 5 TS/s |
| Record length, points (each channel, standard) | 31.25 M 62.5 M (MSO70000 Series) |
| Record length (each channel, Opt. 5XL, DPO70000 series) | 62.5 M |
| Record length (each channel, Opt. 10XL) | 125 M |
| Record length (each channel, Opt. 20XL) | N/A |
| Record length (each channel, Opt. 50XL) | N/A |
| Timing resolution | 40 ps (25 GS/s) |
| Duration at highest sample rate (standard) | 1.25 ms 2.5 ms (MSO70000 Series) |
| Duration at highest sample rate (Opt. 5XL, DPO70000 series) | 2.5 ms |
| Duration at highest sample rate (Opt. 10XL) | 5.0 ms |
| Duration at highest sample rate (Opt. 20XL) | — |
| Duration at highest sample rate (Opt. 50XL) | — |
| Vertical noise (% of full scale) | 0.28% |
| Time base range (Auto mode) | 20 ps/div to 1000 s/div |
| Timing resolution (ET/IT mode) | 200 fs |
| Delta time measurement accuracy (RMS over1.48 ps | |
| Jitter noise floor (with BWE enabled) (typical) | 340 fs |
