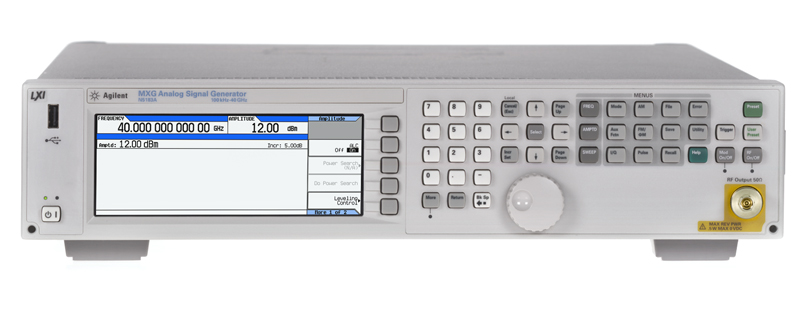

Keysight N5183A/B (MXG) Microwave Analog Signal Generator 微波訊號產生器
- 100 kHz to 20, 31.8 or 40 GHz
- +18 dBm at 20 GHz output power
【弘燁科技-專業儀器】Keysight N5183B N5183A MXG Microwave Analog Signal Generator 二手儀器/買賣/租賃/出租/購買/價格/收購/回收/維修儀器/校驗/校正儀器
歡迎來電諮詢,謝謝
- 儀器介紹
- 儀器規格
- 檔案下載
The MXG microwave analog signal generator delivers the performance needed for broadband component manufacturing up to 20 GHz. This instrument provides < 5 ms frequency switching to improve test times for applications like antenna test and manufacturing, with a small size (2RU) to better utilize rack space. Excellent power and level accuracy make the MXG microwave a reliable stimulus for driving high power devices. Included attenuator allows you to create low-level signals for receiver testing.
【弘燁科技】 Keysight N5183B N5183A MXG Microwave Analog Signal Generator 二手儀器/買賣/租賃/出租/購買/價格/收購/回收/維修儀器/校驗/校正儀器
- 100 kHz to 20, 31.8 or 40 GHz
- +18 dBm at 20 GHz output power
- ≤ 900 µs frequency switching speeds
- ≤ -98 dBc/Hz typical phase noise at 20 kHz offset
- AM, FM, ΦM, and pulse modulation
- < 10 ns pulse rise/fall time and 20 ns pulse widths
- Digital and step sweep
- 100BaseT LAN, USB 2.0 and GPIB
- LXI class-C compliant
- SCPI and IVI-COM drivers
- Backward compatible with PSG, 8340, 8360 and 8370 Series signal generators
儀器規格:n5183a
